A006541 NT100 Note Transport Glory NMD100 NMD050 Dispenser ATM Parts
| Place of Origin | China |
| Brand Name | Glory |
| Certification | ISO9001 |
| Model Number | A006541 |
Glory NMD ATM note dispenser
,ATM parts replacement NMD100
,NT100 transport dispenser warranty

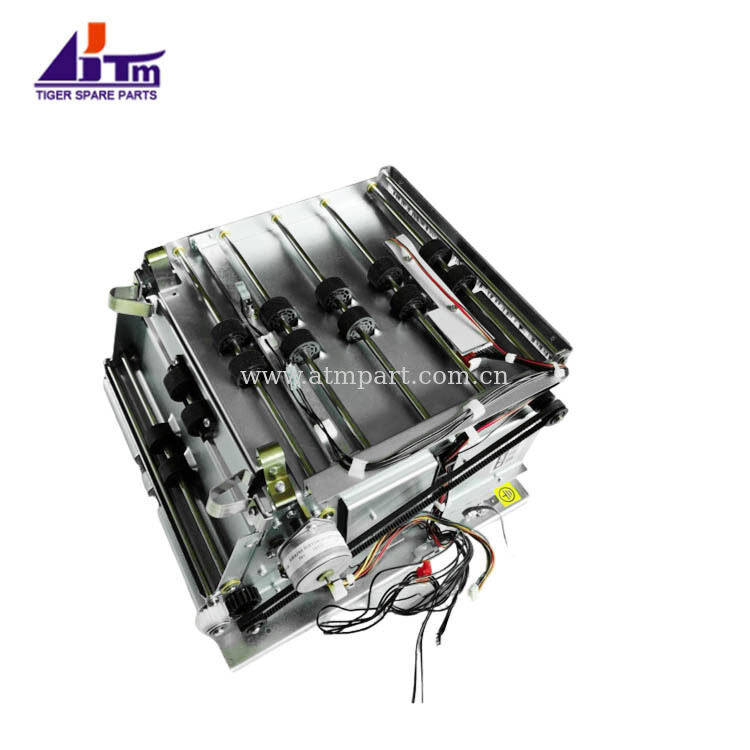

The A006541 NT100 Note Transport is a core note conveying module designed specifically for Glory NMD100 and NMD050 banknote dispensers, widely used in various ATM and cash-handling equipment. It undertakes the entire process of stable banknote pickup, high-speed conveying, smooth channel guidance, and accurate delivery, ensuring efficient, continuous, and jam-free cash output during ATM operation.
| Parameter | Details |
|---|---|
| Part Number | A006541 |
| Product Name | NT100 Note Transport |
| Compatible Models | NMD100 / NMD050 Dispenser |
| Material | High-strength engineering plastic + metal reinforcement |
| Condition | New Original |
| Warranty | 3 Months |
In addition to supplying the complete NT100 Note Transport assembly (A006541), we also provide a full range of corresponding spare parts for maintenance and replacement, including but not limited to:
| Part No. | Description |
|---|---|
| A006731 | Bracket LED |
| A006555 | Shaft 1 |
| A006556 | Shaft 2 |
| A006554 | Shaft 3 |
| A006545 | Shaft locked |
| A007304 | Roller |
| A006318 | Prism |
| A006320 | Belt |
| A006349 | Opto holder |
| A004756 | Photo transistor |
| 3800013 | Diod |
| 6960407 | C-clip, RS 5 |
| 6957103 | Screw,MRT M3x6 |
| 6957303 | Screw,MRT-TT M3x6 |
| 6960212 | Washer |
| A006939 | Bracket |
| A006549 | Plate 4 |
| 6960406 | C-clip, RS 4 |
| A006550 | Plate 5 |
| A006576 | shaft |
| A006478 | Cable, CMC-NT sensor |
| A006477 | Cable, CMC-throat sensor |
| A006285 | Cable power, NFC-CMC-throat |
| A007009 | Protection |
| A006857 | PCB assy |
| A006732 | Bushing |
| 0405009 | Bushing |
| A007381 | Clip |
| A006542 | Gable left |
| A006543 | Gable right |
| A006931 | Support plate assy. |
| A006546 | Plate 1 |
| A006547 | Plate 2 |
| A006579 | Plate 3 |
| A006552 | Plate 7 |
| A006544 | Shaft |
| A006558 | Shaft |
| A006559 | Shaft |
| A006556 | Shaft |
| A006984 | Shaft |
| A006580 | Shaft |
| A001469 | Gear wheel |
| A005405 | Gear wheel |
| 6960212 | Washer |
| A007304 | Roller |
| A001602 | Wheel pulley |
| 6700155 | Bearing |
| 0405009 | Bushing |
| A001590 | Bearing |
| 6700031 | Bearing |
| A001469 | Bearing |
| A005472 | Waggler |
| A006729 | Cam guide |
| A006730 | Rail guide right |
| A005496 | NDU stepping motor |
| A005405 | Wheel pulley assy |
| A006005 | Tape |
| A007340 | Catch magnetic |
| A006318 | Drive belt |
| A007039 | Belt |
| A006362 | Spacer |
| A006908 | Spring blade |
| 0406815 | Spring plate |
| 0400146 | Washer |
| A006985 | Sacing tube |
| 6580023 | Holder |
| 6920009 | Blind rivit |
| 6520092 | Distance |
| A002803 | PC-board assy. |
| A007144 | Pin,RPD2X12 |
| 6960405 | C-clip RS 3.2 |
| 6960406 | C-clip RS 4 |
| 6960407 | C-clip RS 5 |
| 6957103 | Screw MRT M3x6 |
| 6957106 | Screw MRT M3x12 |
| 6957122 | Screw MRT M4x6 |
| 6957303 | Screw MRT-TT M3x6 |
| 6957304 | Screw MRT M3x8 |
| 1671479 | Washer |
| 6960226 | Washer |
| 6960119 | Washer |
| 6960129 | Washer |
| 6970102 | Washer |
| A007121 | Label |
| A006515 | Spring leaf |
| A007027 | Probe assy. |
| A006557 | Shaft |
| A006554 | Shaft |
| A006576 | Plate 6 |
| A007383 | Clip |
| A007387 | Clip |
| A007330 | Cable, SPC-BCU delivery sensor |
| A006974 | Plate 8 |
| 6960201 | Washer |
| 0412249 | GND cable |
| 6520058 | Spacer |
| A006541 | Note Transport assy. |
| 6960146 | Washer BRB 4.2x8x1 ST |
| A007054 | Bushinþ Delrin |
| A006939 | Bracket |
We support one-stop procurement of complete machine assemblies and scattered repair parts, with stable quality, sufficient inventory, and fast delivery, providing reliable support for ATM maintenance and equipment refurbishment customers worldwide.
